PT Series Four-Wheel Differential Mobile Robot PT-01 Pro

PT-01 Pro

PT Series Four-Wheel Differential Mobile Robot PT-01 Pro

Key Features

  • 1 Type: General Mobile Robot Platform.
  • Supports control via standard 232 serial communication protocol.
  • Allows for the reading of chassis-related data and statuses via serial communication.
  • Compatible with ROS development, with available ROS driver package support.
  • Automatic charging system.
  • Equipped with an external power supply module for additional equipment.
  • Customizable appearance.
  • Supports structural modifications for mounting additional equipment.
AERISE-PT-Series-SpecDownload
Get A Quote

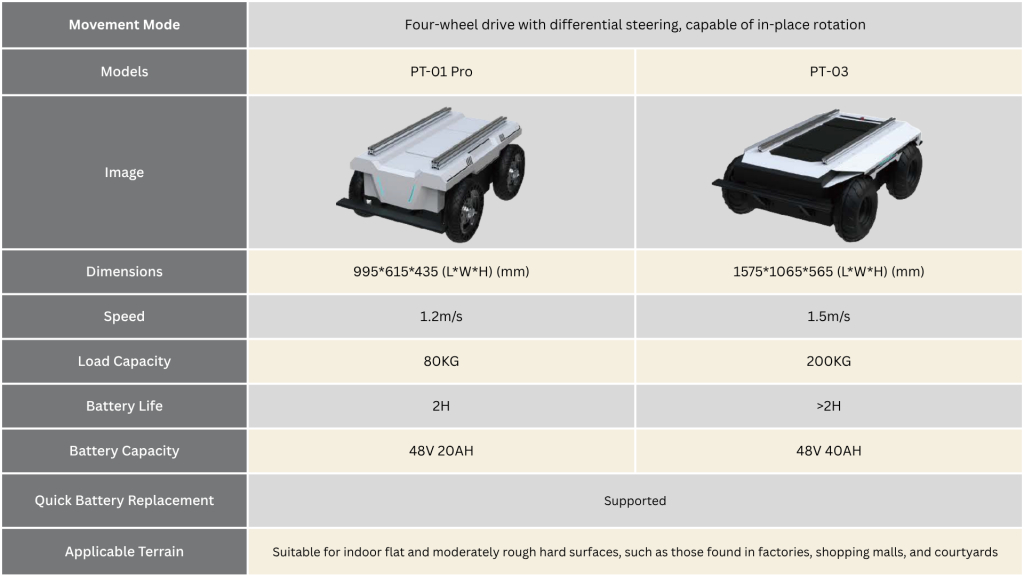

Full Specifications Table –   PT-01 Pro

Movement
  • Four-wheel drive with differential steering, capable of in-place rotation.
    • Dimensions
  • 983x614x433 mm
    • Speed
  • 1.2m/s
    • Load Capacity
  • 80KG
    • Battery Life
  • 3H
    • Battery Capacity
  • 24V 40AH
    • Quick Battery Replacement
  • Supported
    • Applicable Terrain
  • Suitable for both indoor and outdoor environments, including urban roads, agricultural fields, gravel mountain paths, and mixed environments.
