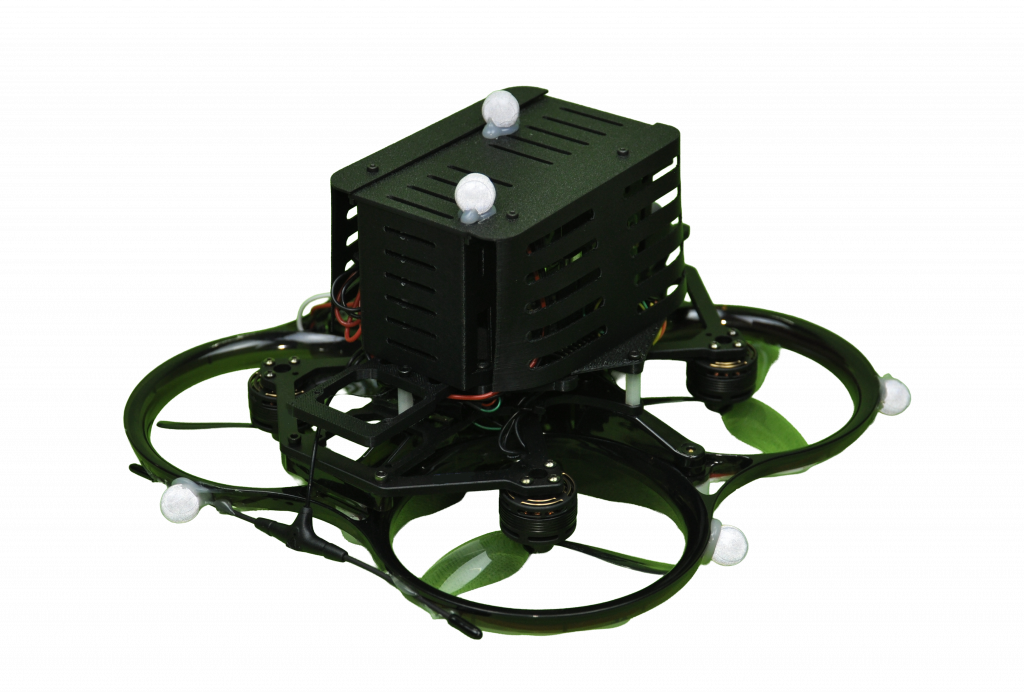

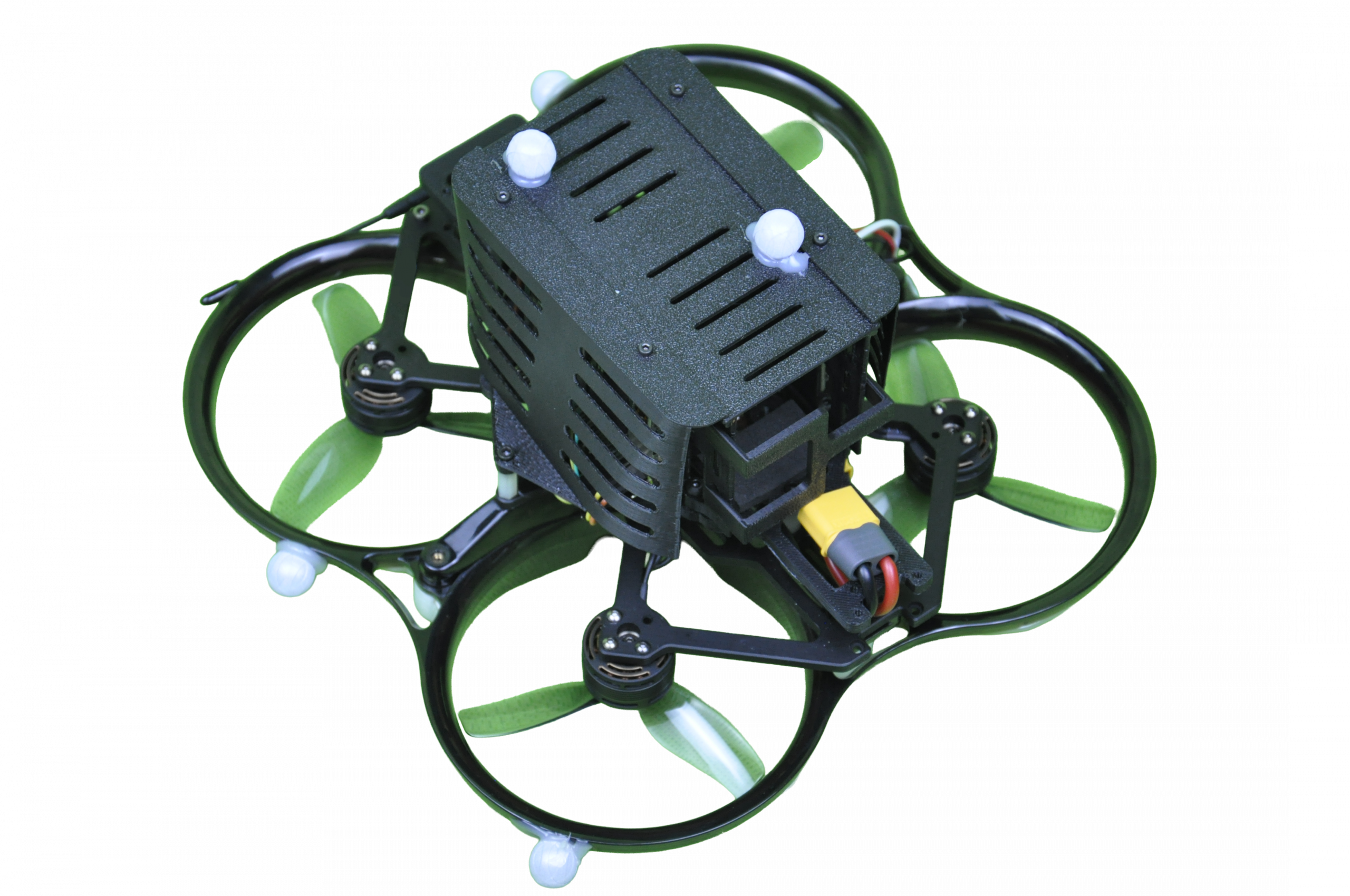

AE-Q150 Quadcopter
Key Features
- 150 mm enclosed structure — safe and stable
- High-performance edge platform (Radxa Zero)
- Programmable lighting system (Teensy + WS2812)
- Multi-drone collaborative control
- Aerise Swarm SDK
- Ready to use — deployment in under 10 minutes
Product Details
| Avionics | Wheelbase: 150 mm Frame: Carbon fiber enclosed propeller guard Weight: < 250 g (including battery) Flight Controller: PX4 Mini version (custom-tuned) Compute Module: Radxa Zero (4 × A53 / 2 GB RAM) Lighting System: Teensy 4.1 + WS2812 RGB LED × 4 Communication: Wi-Fi / ROS2 Bridge / MQTT Power: 4 S Li-Po 850 mAh Flight Time: 8 – 10 minutes Safety Features: Low-voltage protection / Emergency stop / Software altitude limit | ||||||||||
| Main Features | One-click takeoff / safe hover Synchronized multi-drone takeoff & light effects Motion-capture integration Lightweight VIO interface Python API Gazebo simulation interface Safety protection mechanisms | ||||||||||
| Application Scenarios | Research & Education Algorithm verification platform Exhibitions & Performances Digital twin & simulation studies | ||||||||||
| Software Ecosystem | Aerise Drone Research Stack includes： Aerise Core Service — Flight control bridge & safety guardian LightShow Gateway — Lighting control & synchronization Aerise Swarm SDK — Python & ROS interfaces Swarm Studio (Optional) — GUI tool for swarm formation & light-show scripting Gazebo Sim Bridge — Unified simulation & real-world interface License Manager — License & feature management | ||||||||||
| Kits & Configurations |
| ||||||||||
| Technical Support & Licensing | SDK documentation, sample libraries, and quick-start tutorials provided Each device bound to a unique license file Remote technical support and system updates available Optional training & on-site commissioning services |
